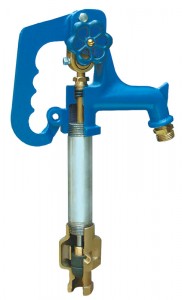

800LF Series Deluxe Frost-Proof Yard Hydrant
Certified Lead Free

Models 800LF – 818LF

Certified by Truesdail Laboratories. Meets all Federal Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)

• 3/4” or 1″ NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• All Simmons Yard Hydrants have Cast Iron head and handle with Blue Polyester Powder Coated Finish
• Flow Lock Wheel
• Plunger can be replaced without digging the hydrant up.
• Max Pressure 120 PSI
• Many parts and accessories are common for all models

Part No.	Inlet	Bury Depth	Weight (lbs.)
800LF	3/4″	1′	11.9
810LF	1″	1′	11.9
801LF	3/4″	1-1/2′	13.5
811LF	1″	1-1/2′	13.5
802LF	3/4″	2′	14.5
812LF	1″	2′	14.5
803LF	3/4″	3′	16.8
813LF	1″	3′	16.8
804LF	3/4″	4′	18.9
814LF	1″	4′	18.9
805LF	3/4″	5′	21.2
815LF	1″	5′	21.2
806LF	3/4″	6′	23.4
816LF	1″	6′	23.4
807LF	3/4″	7′	25.7
817LF	1″	7′	25.7
808LF	3/4″	8′	28.2
818LF	1″	8′	28.2

Hydrant Repair Parts for Models 800LF – 818LF

Ref. Letter	Part No.	Name of Part
	850SB	Parts Kit
	840	Head – Complete
A	8820	Head
B	8821	Handle
C	8822SB	Valve Body (3/4″ Inlet)
C	8832A	Valve Body (1″ Inlet)
D	8843	Extension Rod, 7/16″
E	8824*	Flow Lock Wheel
F	8825°	Brass Connector
G	8826°	Brass Links (Price per pair)
H	8847°	Brass Packing Nut
I	8844	Hose Adapter
J	8829*	Brass Stem, Square Head
K	8839°	Buna-N “O” Rings (Price per pair)
L	8814	Pump Rod, 7/16″
L	8845	Stainless Steel Pump Rod, 7/16″
M	8815	Galvanized Pipe Casing, 1″
N	8842°	Plunger (One piece)
P	8834	Rod Coupling, 7/16″
Q	8301°	Stainless Steel Lock Nut
R	8836°	Fulcrum Bolt – Stainless Steel
S	8837°	Square Head Set Screw St. Steel
T	8610*	Screw for Flow Lock Nut
° Included in Parts Kit. Refer to Parts Kit photo
* These parts make up the Flow Lock Wheel assembly
