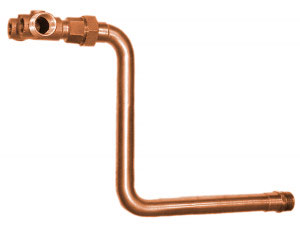

Fabricated Elevated Tank Cross w/ Union
Certified Lead Free
• Copper Pipe
• Lead Free Solder
• Silicon Bronze Cross
• Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
• Available with Drain Elbow, upon request
| Part No. | Tank Tee Length | Height | Tapping Each Leg FxM | Tank Connection Tapping FxM | Female Tapping Top of Cross | Two Female Tappings on Side | Weight | List Price |
| 790SB | 11 in. | 10 | 3/4 x 1 | – x 1 | one 1/2 | 1/4 | 3.1 | – |
| 740SB | 11 in. | 10 | 3/4 x 1 | – x 1 | two 1/2 | 1/4 | 3.1 | – |
| 794SB | 8 in. | 10 | 3/4 x 1 | – x 1 | one 1/2 | 1/4 | 3.1 | – |
| 797SB | 11 in. | 12 | 3/4 x 1 | – x 1 | one 1/2 | 1/4 | 3.2 | – |
| 796SB | 11 in. | 12 | 3/4 x 1 | – x 1 | two 1/2 | 1/4 | 3.2 | – |
| 791SB | 11 in. | 10 | 1 x 1 1/4 | – x 1 1/4 | one 3/4 | 1/4 | 4.2 | – |
| 798SB | 11 in. | 12 | 1 x 1 1/4 | – x 1 1/4 | one 3/4 | 1/4 | 4.2 | – |
| 741SB | 11 in. | 10 | 1 x 1 1/4 | – x 1 1/4 | two 3/4 | 1/4 | 4.2 | – |
| 799SB | 11 in. | 12 | 1 x 1 1/4 | – x 1 1/4 | two 3/4 | 1/4 | 4.2 | – |
| 744SB | 14 in. | 10 | 1 x 1 1/4 | – x 1 1/4 | two 3/4 | 1/4 | 4.3 | – |
3rd Party Certified Truesdail Laboratories
