Hydrant Lengths

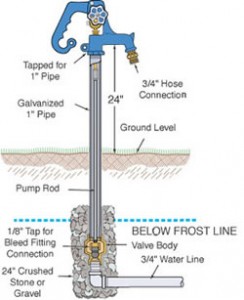

The Frost Proof Yard Hydrant provides running water for lawn and garden, livestock and fire  protection all year, even in sub-zero temperatures. The shut-off valve operates below the frost line. Hydrant cannot freeze because when it is closed, all water in the standpipe drains out a hole in the valve which is set in the ground below the frost line. Hydrant spout operates at a convenient height (24 inches) from the ground level so that it can spill into a stock tank. Adapter (No. 8828) is threaded for 3/4″ hose. Hydrant can be easily installed anywhere water is supplied under pressure. To prevent unauthorized use, handle can be padlocked by inserting padlock into holes provided in handle and head.

800LF Series 4800LF, 5800LF & 900 Series
Bury Length Rod & Pipe Length Model Overall Length Model Model Model Overall Length
1′ 30″ 800LF 40″ 4800LF 5800LF 900 39 1/4″
1 1/2′ 38″ 801LF 48″ 4801LF 5801LF 47 1/4″
2′ 44″ 802LF 54″ 4802LF 5802LF 902 53 1/4″
3′ 56″ 803LF 66″ 4803LF 5803LF 903 65 1/4″
4′ 68 1/2″ 804LF 78 1/2″ 4804LF 5804LF 904 77 3/4″
5′ 80 1/2″ 805LF 90 1/2″ 4805LF 5805LF 905 89 3/4″
6′ 92 1/4″ 806LF 102 1/4″ 4806LF 5806LF 906 101 1/2″
7′ 104″ 807LF 114″ 4807LF 113 1/4″
8′ 116″ 808LF 126″ 4808LF 125 1/4″

Sanitary Yard Hydrants

The SIMMONS SANITARY YARD HYDRANT is engineered to be fully self-contained and easily serviced in the field. It permits water flow year-around, even in freezing weather, yet there is no ground contamination nor contamination of the water supply. This hydrant drains back into the stainless steel canister.

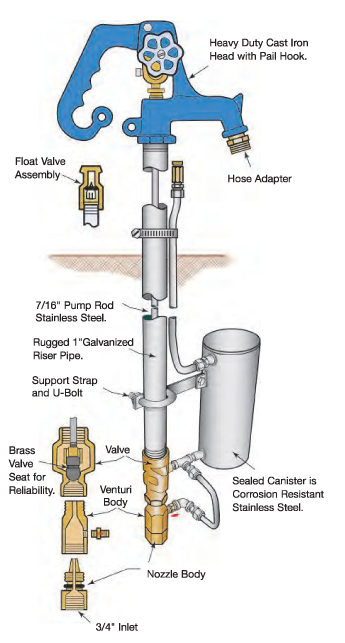

Simmons Sanitary Hydrant incorporates a nozzle-venturi adapter( located above-ground for serviceability), and a stainless steel underground canister with the time proved, dependable, basic Simmons yard hydrant design. When the hydrant is off, plunger seals against the valve seat and stops the flow. Water remaining in riser pipe drains back into the canister which is buried below the frost level.

When the hydrant is on, flow through the nozzle creates a vacuum which empties the canister through the hose bibb.

Because the hydrant drains into a sealed canister and not into the ground through a “drain outlet”, the water never comes in contact with the soil. This conserves water and avoids possible contamination of your water supply.



Canister
Part No.
Bury Depth
Overall Length
Weight
6800LF
1 ft.
45″
16 lb
6802LF
2 ft.
57″
18 lb
6803LF
3 ft.
69″
20 lb
6804LF
4 ft.
81″
22 lb
6805LF
5 ft.
93″
24 lb
6806LF
6 ft.
105″
26 lb
6807LF
7 ft.
117″
28 lb
6808LF
8 ft.
129″
30 lb

Special Instructions

The Brass Packing Nut located on the head of the Simmons Sanitary Yard Hydrant has been factory adjusted. If leakage should occur upon installation or after usage, you may find it necessary to slightly tighten the Brass Packing Nut. “CAUTION” Do not overtighten Brass Packing Nut. Damage will occur to inner O rings. Do not leave hose attached in freezing temperatures as it may prevent proper drainage of the shut-off valve.

To prevent unauthorized use, handle can be padlocked by inserting padlock into holes provided in handle and head.
