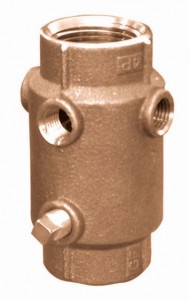

Check Valve – Control Center
Certified Lead Free*
• Silicon bronze cast body
• Silicon bronze cast poppet
• 4 Tappings
• Female Threads
* Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.
All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.
|Part No.||Size||Weight||List Price|
|602SB||1 1/4 in.||1.7|
|603SB||1 1/2 in.||2.1|
|607SB||1 1/4 in.||1.7|
|601-604 tappings; One 1/8″ inlet, Two 1/4″ outlets, One 1/8″ outlet
|606-607 tappings; Two 1/4″ outlets
