5800LF Series Designer Series Landscape Hydrant- Certified Lead Free

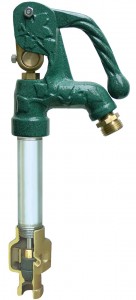

5800LF Series Designer Series Landscape Hydrant
Certified Lead Free

Certified by Truesdail Laboratories. Meets all Federal and state Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)

• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Plunger can be replaced without digging the hydrant up
• Series 5800 Landscape Hydrant has floral styling and green color, sure to be the preferred choice of homeowners who take extra pride in their lawns and gardens
• All components, other than head casting and handle, are identical to 800LF Series
• Green polyester powder coated finish
• Max Pressure 120 PSI
• Individually boxed with sales features and installation instructions printed on box

Part No.	Bury Depth	Weight (lbs.)
5800LF	1′	11.2
5801LF	1-1/2′	12.6
5802LF	2′	13.6
5803LF	3′	15.9
5804LF	4′	18.1
5805LF	5′	20.6
5806LF	6′	23.0

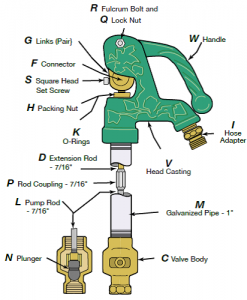

Ref. Let.	Part No.	Name of Part
	850SB	Parts Kit
	895	Head – Complete
V	8893	Head
W	8894	Handle
C	8832	Valve Body
D	8843	Extension Rod, 7/16″
F	8825°	Brass Connector
G	8826°	Brass Links (Price per pair)
H	8847°	Brass Packing Nut
I	8844	Hose Adapter
K	8839°	Buna-N “O” Rings (Price per pair)
L	8814	Pump Rod, 7/16″
M	8815	Galvanized Pipe Casing, 1″
N	8842°	Plunger (One piece)
P	8834	Rod Coupling, 7/16″
Q	8301°	Stainless Steel Lock Nut
R	8836°	Fulcrum Bolt – Stainless Steel
S	8837°	Square Head Set Screw St. Steel
° Included in Parts Kit.
* Price on Request, Consult factory
