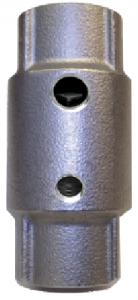

Double Tapped Check Valve – Stainless Steel
Certified Lead Free
• 304 Stainless Steel cast body
• 304 Stainless Steel cast poppet
• Female Threads
Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.
All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.
| Part No. | Size | Tapped | Weight | List Price | |
| Inlet | Outlet | ||||
| 542SS | 1 | 1/8 | 1/4 | 1.2 | |
| 581SS | 1 | 1/4 | 1/4 | 1.2 | |
| 588SS | 1 | 1/8 | 1/8 | 1.2 | |
| 543SS | 1 1/4 | 1/8 | 1/4 | 1.7 | |
| 582SS | 1 1/4 | 1/4 | 1/4 | 1.7 | |
| 589SS | 1 1/4 | 1/8 | 1/8 | 1.7 | |
| 544SS | 1 1/2 | 1/8 | 1/8 | 2.0 | |
| 583SS | 1 1/2 | 1/4 | 1/4 | 2.0 | |
| 533SS | 1 1/2 | 1/8 | 1/8 | 2.0 | |
| 545SS | 2 | 1/8 | 1/4 | 3.7 | |
| 584SS | 2 | 1/4 | 1/4 | 3.7 |
3rd Party Certified Truesdail Laboratories
