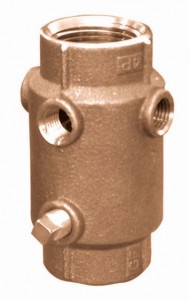

Check Valve – Control Center

Check Valve – Control Center
Certified Lead Free*

• Silicon bronze cast body
• Silicon bronze cast poppet
• 4 Tappings
• Female Threads

* Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No. Size Weight List Price
601SB 1 in. 1.3 $66.76
602SB 1 1/4 in. 1.7 $86.44
603SB 1 1/2 in. 2.1 $110.13
604SB 2 in. 3.6 $196.63
606SB 1 in. 1.3 $66.76
607SB 1 1/4 in. 1.7 $86.44
601-604 tappings; One 1/8″ inlet, Two 1/4″ outlets, One 1/8″ outlet
606-607 tappings; Two 1/4″ outlets
