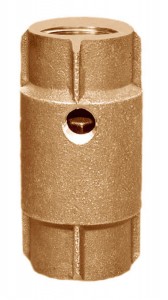

Check Valve – Single Tap

Check Valve – Single Tap
Certified Lead Free*

• Silicon bronze cast body
• Silicon bronze cast poppet
• Female Threads

* Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No.	Part No.	Size	Tapped		Weight	List Price	List Price
Stemmed	Stemless		Inlet	Outlet		Stemmed	Stemless
521SB	–	3/4	1/8	–	.8	$52.67	–
550SB	–	3/4	1/4	–	.8	$52.67	–
551SB	–	3/4	–	1/8	.8	$52.67	–
552SB	–	3/4	–	1/4	.8	$52.67	–
522SB	2522SB	1	1/8	–	1.2	$62.03	$62.03
553SB	2553SB	1	1/4	–	1.2	$62.03	$62.03
554SB	2554SB	1	–	1/8	1.2	$62.03	$62.03
555SB	2555SB	1	–	1/4	1.2	$62.03	$62.03
523SB	2523SB	1 1/4	1/8	–	1.7	$82.76	$82.76
556SB	2556SB	1 1/4	1/4	–	1.7	$82.76	$82.76
557SB	–	1 1/4	–	1/8	1.7	$82.76	–
558SB	2558SB	1 1/4	–	1/4	1.7	$82.76	$82.76
Part No.	Part No.	Size	Tapped		Weight	List Price	List Price
Stemmed	Stemless		Inlet	Outlet		Stemmed	Stemless
524SB	2524SB	1 1/2	1/8	–	2.0	$102.38	$102.38
559SB	2559SB	1 1/2	1/4	–	2.0	$102.38	$106.15
560SB	2560SB	1 1/2	–	1/8	2.0	$102.38	$106.15
561SB	2561SB	1 1/2	–	1/4	2.0	$102.38	$106.15
525SB	2525SB	2	1/8	–	3.7	$162.08	$162.08
562SB	2562SB	2	1/4	–	3.7	$162.08	$164.54
563SB	2563SB	2	–	1/8	3.7	$162.08	$164.54
564SB	2564SB	2	–	1/4	3.7	$162.08	$164.54
526SB	–	2 1/2	1/8	–	9.8	$764.52	–
527SB	–	3	1/8	–	10.1	$1115.26	–
528SB	–	4	1/8	–	23.5	$1474.34	–
