800SB Series Deluxe Frost-Proof Yard Hydrant – Certified Lead Free

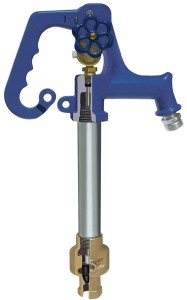

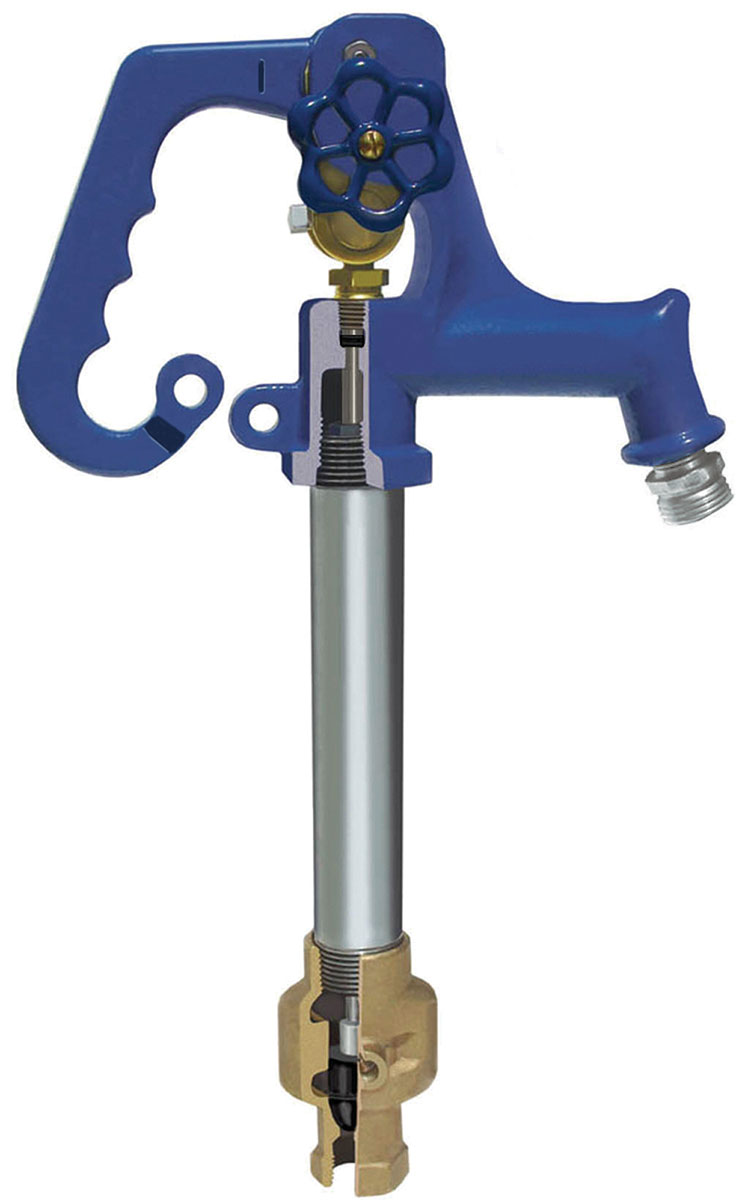

800SB Series Deluxe Frost-Proof Yard Hydrant
Certified Lead Free*

Certified by Truesdail Laboratories. Meets all Federal and state Safe Drinking Water Acts and requirements, including California Prop. 65.

• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Cast Iron head and handle
• Galvanized pipe
• Silicon bronze by-pass valve
• Stainless steel extension rod
• Aluminum hose adapter
• Polyester powder coated finish
• Max Pressure 120 PSI
• Plunger can be replaced without digging the hydrant up.
• As a option for campgrounds, Simmons recommends their 820LF series with SS pipe and rod
* Components that come on contact with water supply contain less than .05% (1/20 of 1%) Lead

Part No. Bury Depth Weight (lbs.)
800SB 1′ 12.1
801SB 1-1/2′ 13.5
802SB 2′ 14.5
803SB 3′ 16.5
804SB 4′ 19.2
805SB 5′ 21.2
806SB 6′ 22.8
807SB 7′ 25.9
808SB 8′ 28.2

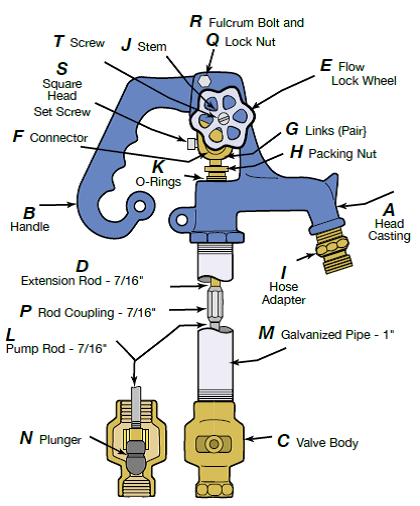

untitled800 Repair Kit



Ref. Let. Part No. Name of Part
850SB Parts Kit
840SB Head – Complete
A 8820 Head
B 8821 Handle
CC 8822SB Silicon Bronze Valve Body
D 8843 St. Steel Extension Rod, 7/16″
E 8824* Flow Lock Wheel
F 8825° Brass Connector
G 8826° Brass Links (Price per pair)
H 8847° Brass Packing Nut
I 8844 Aluminum Hose Adapter
J 8829* Brass Stem, Square Head
K 8839° Buna-N “O” Rings (Price per pair)
L 8814 Pump Rod, 7/16″
M 8815 Galvanized Pipe Casing, 1″
N 8842° Plunger (One piece)
P 8834 Rod Coupling, 7/16″
Q 8301° Stainless Steel Lock Nut
R 8836° Fulcrum Bolt – Stainless Steel
S 8837° Square Head Set Screw St. Steel
T 8610* Screw for Flow Lock Nut
° Included in Parts Kit. Refer to Parts Kit photo
* These parts make up the Flow Lock Wheel assembly
