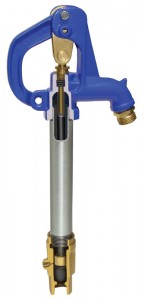

900 Series Frost-Proof Yard Hydrant Import- Lead Free

900 Series Frost-Proof Yard Hydrant Import- Lead Free     Not for Sale in CA, LA, MD, or VT.

• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Cast Iron head and handle – with Blue Polyester Powder Coat Finish
• Plunger can be replaced without digging the hydrant up
• Max. Pressure 70 PSI

Part No. Bury Depth Weight (lbs.)
900 1′ 11.2
902 2′ 13.5
903 3′ 15.6
904 4′ 17.7
905 5′ 19.9
906 6′ 22.0

900

Ref. Let. Part No. Name of Part
841 Complete Head
851 Parts Kit
V 8860 Head
W 8861 Handle
C 8862 Valve Body
D 8863 Extension Rod, 7/16″
F 8864° Brass Connector
G 8865° Brass Links (price per pair)
H 8869° Brass Packing Nut
I 8872 Brass Hose Adapter
K 8870° Buna-N O-Rings (price per pair)
L 8814 Galvanized Pump Rod 7/16″
M 8815 Galvanized Pipe Casing 1″
N 8871° Plunger (One piece)
Q 8867° Galvanized Lock Nut
R 8866° Galvanized Fulcrum Bolt
S 8868° Square Head Set Screw, Stainless Steel
° Included in Parts Kit.
