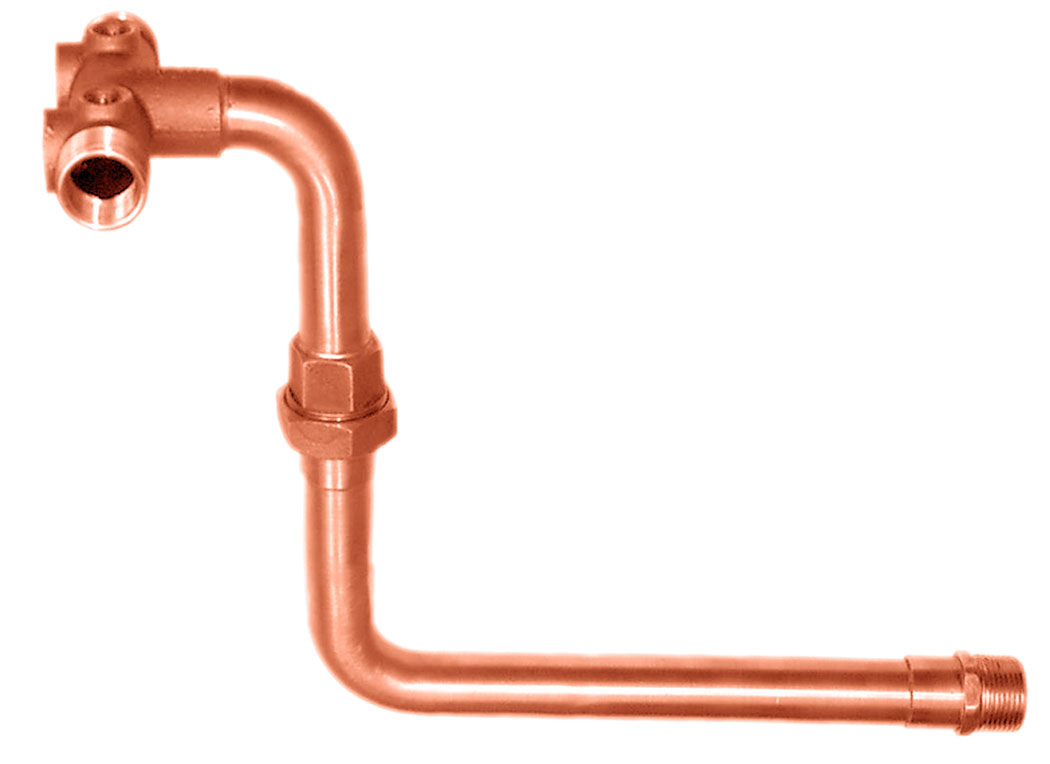

Fabricated Elevated Tank Cross w/ Union on Rise

Fabricated Elevated Tank Cross w/ Union on Rise

Certified Lead Free

• Copper Pipe
• Lead Free Solder
• Silicon Bronze Cross
• Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
• Available with Drain Elbow, upon request

Part No. Tank Tee Length Height Tapping Each Leg FxM Tank Connection Tapping FxM Female Tapping Top of Cross Two Female Tappings on Side Weight List Price
784SB 11 in. 10 3/4 x 1 – x 1 one 1/2 1/4 3.1 $134.05
789SB 9 in. 10 3/4 x 1 – x 1 one 1/2 1/4 2.9 $134.05
780SB 11 in. 10 3/4 x 1 – x 1 two 1/2 1/4 3.1 $133.67
788SB 7 1/2 in. 10 3/4 x 1 – x 1 two 1/2 1/4 2.9 $134.05
7081SB 11 in. 12 3/4 x 1 – x 1 two 1/2 1/4 3.0 $139.06
7892SB 9 in. 10 3/4 x 1 – x 1 two 1/2 1/4 2.9 $134.05
785SB 11 in. 10 1 x 1 1/4 – x 1 1/4 one 3/4 1/4 4.1 $211.40
7080SB 14 in. 10 1 x 1 1/4 – x 1 1/4 one 3/4 1/4 4.2 $217.08
781SB 11 in. 10 1 x 1 1/4 – x 1 1/4 two 3/4 1/4 4.1 $211.40
