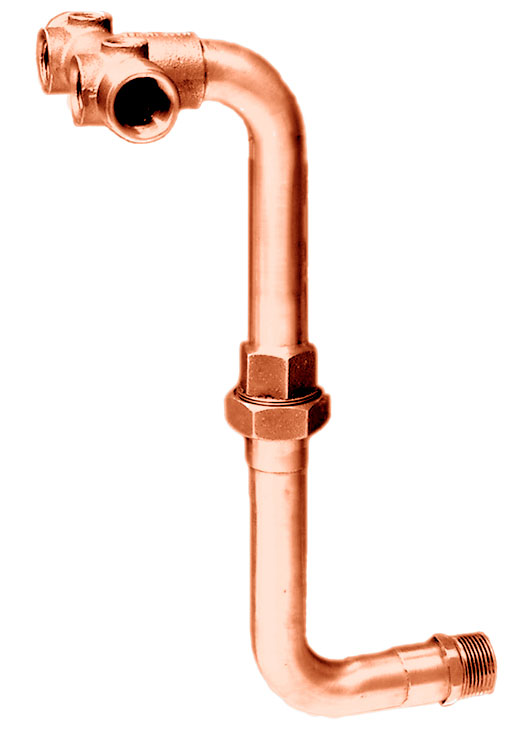

Short Fabricated Elevated Tank Cross w/ Union on Rise

Fabricated Short Elevated Tank Cross w/ Union on Rise

Certified Lead Free

• Copper Pipe
• Lead Free Solder
• Silicon Bronze Cross
• Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.
• Available with Drain Elbow, upon request

Part No. Tank Tee Length Height Tapping Each Leg FxM Tank Connection Tapping FxM Female Tapping Top of Cross Two Female Tappings on Side Weight List Price
772SB* 3 7/8 in. 12 3/8 3/4 x 1 1 x – one 1/2 1/4 2.8
770SB* 3 7/8 in. 12 3/8 3/4 x 1 1 x – two 1/2 1/4 2.8
770-125SB 3 7/8 in. 12 3/8 3/4 x 1 1 1/4 x – two 1/2 1/4 2.8
795SB* 3 7/8 in. 10 3/4 x 1 1 x – two 1/2 1/4 2.7
773SB* 3 7/8 in. 12 3/8 1 x 1 1/4 1 1/4 x – one 3/4 1/4 3.7
771SB* 3 7/8 in. 12 3/8 1 x 1 1/4 1 1/4 x – two 3/4 1/4 3.7
775SB 3 7/8 in. 12 3/8 3/4 x 1 – x 1 one 1/2 1/4 2.8
774SB 3 7/8 in. 12 3/8 3/4 x 1 – x 1 two 1/2 1/4 2.8
7070SB 3 7/8 in. 10 3/4 x 1 – x 1 two 1/2 1/4 2.7
* Female fitting at tank connection
