Foot Valve – Female Threads

Foot Valve - Female Threads Lead Free* - SB 400 SeriesFoot Valve – Female Threads
Certified Lead Free*

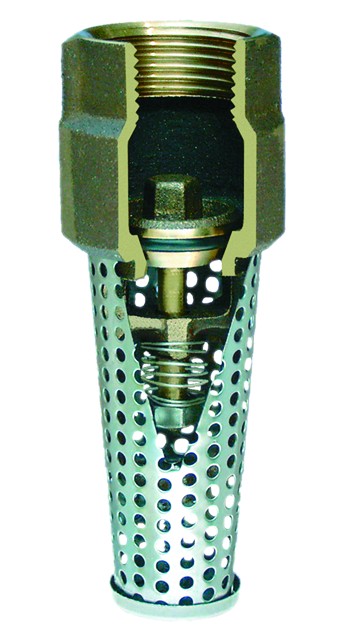

400 SB Series Foot Valves

• Silicon bronze cast body
• Silicon bronze cast poppet
• Stainless Steel Perforated Strainer
• Female Threads

*Certified Lead Free to NSF/ANSI 372 and NSF/ANSI 61. Meets all Federal and State Safe Drinking Water Acts and requirements including California Prop 65.



All foot valves furnished with Buna-N O-Ring, stainless steel spring and stainless steel locknut.

All foot valves have a working pressure of 400 psi.

Part No. Size Weight List Price
452SB 3/4 in. .50 $53.13
453SB 1 in. .80 $59.05
404SB** 1 1/4 in. 1.0 $69.27
454SB 1 1/4 in. 1.1 $64.51
455SB 1 1/4 in. 1.3 $71.24
456SB 1 1/2 in. 1.7 $115.04
457SB 2 in. 3.0 $182.50
458SB 2 1/2 in. 7.0 $606.85
459SB 3 in. 9.2 $833.82
460SB 4 in. 18.7 $1387.38
461SB 6 in. 33.5 $3044.83
** 404SB enters 2″ pipe
