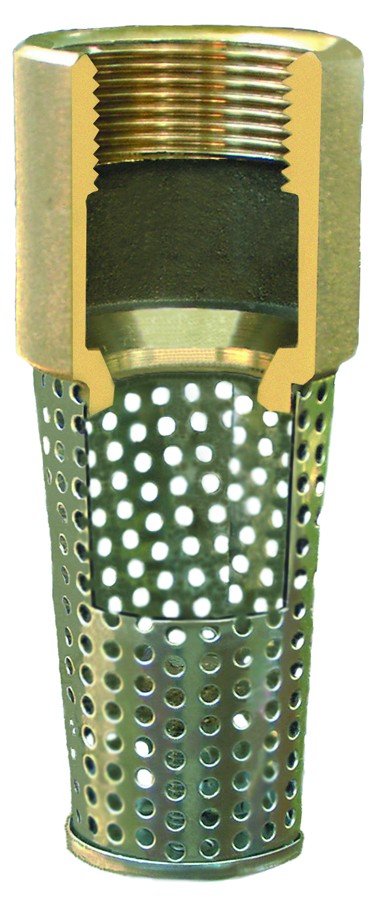

Suction Strainer

Suction Strainer
Certified Lead Free*

400 SB Series

• Silicon bronze cast body
• Silicon bronze cast poppet
• Stainless Steel Perforated Strainer
• Female Threads

* Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

All foot valves furnished with Buna-N O-Ring, stainless steel spring and stainless steel lock-nut.

All foot valves have a working pressure of 400 psi

Part No.	Size	Weight	List Price
490SB	3/4 in.	.50
491SB	1 in.	.60
492SB	1 1/4 in.	1.1
493SB	1 1/2 in.	1.5
494SB	2 in.	2.6
495SB	2 1/2 in.	6.2
496SB	3 in.	8.1
497SB	4 in.	14.7
489SB	6 in.	32.0
