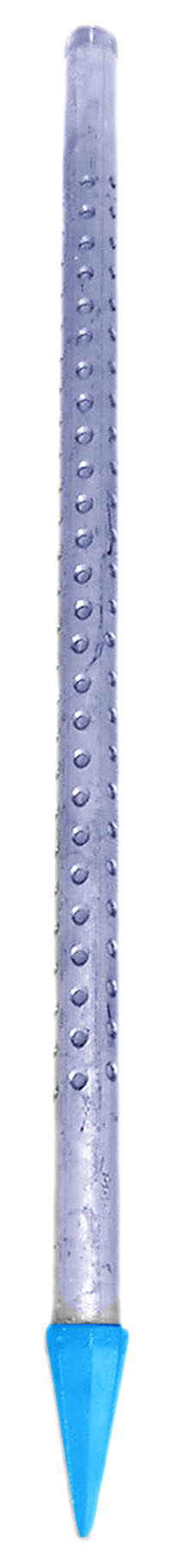

Drive Well Point – Inside Gauze

Well Point Lengths

Pipe Length Overall Length Jacket Length
24″ 30″ 18 7/8″
30″ 36″ 23 7/8″
36″ 42″ 30 1/4″
42″ 48″ 35 3/8″
48″ 54″ 41 1/8″
60″ 66″ 52 7/8″
66″ 72″ 59 3/4″
96″ 102″ 88 3/4″

Drive Well Point – Inside Gauze
Certified Lead Free

• Heavy duty galvanized pipe
• Cast iron point
• Stainless Steel gauze and screen

Stainless Steel Part No. Gauze Pipe Length Pipe Size Weight List Price
1 1/4″ 1721 60 30 1 1/4 8.0 $128.55
1722 60 36 1 1/4 10.0 $138.51
1724 60 48 1 1/4 11.0 $169.20
1725 60 60 1 1/4 14.0 $193.33
1727 80 30 1 1/4 8.0 $128.55
1728 80 36 1 1/4 10.0 $138.51
1730 80 48 1 1/4 11.0 $169.20
1731 80 60 1 1/4 14.0 $193.33
2″ 1752 60 36 2 16.5 $210.84
1753 60 48 2 19.3 $272.35
1754 60 60 2 21.0 $333.86
1758 80 36 2 16.5 $210.84
1759 80 48 2 19.3 $272.35
1760 80 60 2 21.0 $333.86
