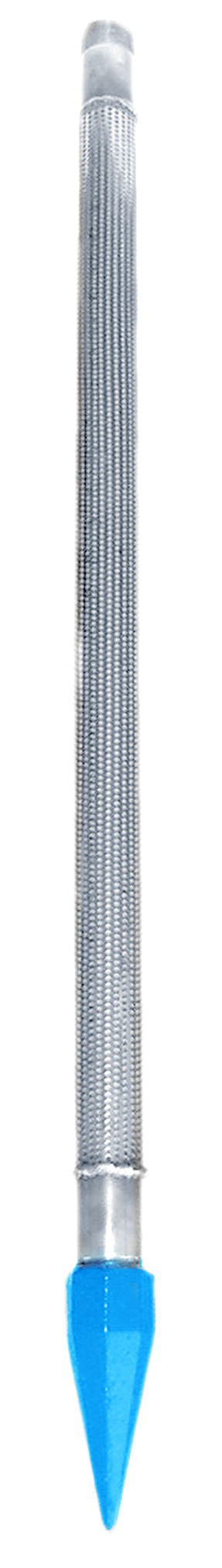

Drive Well Point

Drive Well Point
Certified Lead Free

• Heavy duty galvanized inner pipe
• Cast iron point
• Stainless Steel gauze and screen

Well Point Lengths

Pipe Length Overall Length Jacket Length
24″ 30″ 18 7/8″
30″ 36″ 23 7/8″
36″ 42″ 30 1/4″
42″ 48″ 35 3/8″
48″ 54″ 41 1/8″
60″ 66″ 52 7/8″
66″ 72″ 59 3/4″
96″ 102″ 88 3/4″

***Galvanized couplings and 5 foot sections of pipe are available upon request.

Stainless Steel Part No. Gauze Pipe Length Pipe Size Weight List Price
1-1/4″ 1720-1 60 24″ 1-1/4″ 6.6 $118.61
1-1/4″ 1721-1 60 30″ 1-1/4″ 8.4 $128.44
1-1/4″ 1722-1 60 36″ 1-1/4″ 9.4 $138.40
1-1/4″ 1723-1 60 42″ 1-1/4″ 9.9 $149.43
1-1/4″ 1724-1 60 48″ 1-1/4″ 11.8 $169.20
1-1/4″ 1725-1 60 60″ 1-1/4″ 14.6 $193.23
1-1/4″ 1726-1 80 24″ 1-1/4″ 6.6 $118.61
1-1/4″ 1727-1 80 30″ 1-1/4″ 8.4 $128.44
1-1/4″ 1728-1 80 36″ 1-1/4″ 9.4 $138.40
1-1/4″ 1729-1 80 42″ 1-1/4″ 9.9 $149.43
1-1/4″ 1730-1 80 48″ 1-1/4″ 11.8 $169.20
1-1/4″ 1731-1 80 60″ 1-1/4″ 14.6 $193.23
1-1/4″ 1732-1 100 24″ 1-1/4″ 6.6 $118.61
1-1/4″ 1733-1 100 30″ 1-1/4″ 8.4 $128.44
1-1/4″ 1734-1 100 36″ 1-1/4″ 9.4 $138.40
1-1/4″ 1735-1 100 42″ 1-1/4″ 9.9 $149.43
1-1/4″ 1736-1 100 48″ 1-1/4″ 11.8 $169.20
1-1/4″ 1737-1 100 60″ 1-1/4″ 14.6 $193.23
1-1/2″ 1740-1 60 24″ 1-1/2″ 7.8 $140.22
1-1/2″ 1741-1 60 30″ 1-1/2″ 9.5 $158.10
1-1/2″ 1742-1 60 36″ 1-1/2″ 11.0 $174.63
1-1/2″ 1770-1 60 48″ 1-1/2″ 14.0 $272.99
1-1/2″ 1775-1 60 60″ 1-1/2″ 17.0 $-
1-1/2″ 1745-1 80 24″ 1-1/2″ 7.8 $140.22
1-1/2″ 1746-1 80 30″ 1-1/2″ 9.5 $158.10
1-1/2″ 1747-1 80 36″ 1-1/2″ 11.0 $174.63
2″ 1750-1 60 24″ 2″ 12.0 $181.23
2″ 1751-1 60 30″ 2″ 14.0 $200.99
2″ 1752-1 60 36″ 2″ 16.3 $210.77
2″ 1753-1 60 48″ 2″ 20.1 $272.35
2″ 1754-1 60 60″ 2″ 23.8 $333.86
2″ 1756-1 80 24″ 2″ 12.0 $181.23
2″ 1757-1 80 30″ 2″ 14.0 $200.99
2″ 1758-1 80 36″ 2″ 16.3 $210.77
2″ 1759-1 80 48″ 2″ 20.1 $272.35
2″ 1760-1 80 60″ 2″ 23.8 $333.86
