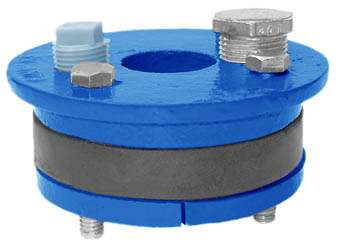

Well Seal – Solid Top Plate

Well Seal – Single Drop Pipe – Solid Top Plate – Submersible Pump

• Class 25 Non-toxic lead free painted cast iron
• Zinc plated steel bolts
• Single Hole
• 3/4″ molded rubber, 50 durometer

Please note: 6 5/8″, 10″ and 12″ cast iron well seals and all heavy duty cast iron well seals have been replaced by steel well seals.

Part No. Well Size I.D. Drop Pipe Size Cable Hole Tapping Vent Tapping Weight List Price
106 2 3/4 1/8 1/8 .7
107 2 1 1/8* 1/8* .7
301 4 1 3/4 1/2 3.4
301B 4 Blank   –   – 3.6
048 4 1 Offset 3/4 1/2 3.43
049 4 1 1/4 Offset 3/4 1/2 3.2
306 4 1/4 1 3/4 1/2 3.7
323 5 1 3/4 1/2 5.6
327B 5 5/8 Blank   –   – 7.5
313A 6 Blank 1 1/2 8.6
313B 6 Blank 1 8.9
313 6 1 1 1/2 8.1
314 6 1 1/4 1 1/2 7.7
315 6 1 1/2 1 1/2 7.8
316 6 2 1 1/2 7.2
021 6 3 Offset 1 1/2 5.1
318 6 1/4 1 1 1/2 8.1
318B 6 1/4 Blank   – 8.3
319 6 1/4 1 1/4 1 1/2 8.0
320 6 1/4 1 1/2 1 1/2 7.8
321 6 1/4 2 1 1/2 7.5
* One 1/8″ Drilled hole – no threads
Blank well seals available upon request
