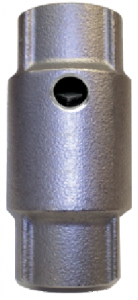

Single Tapped Check Valve – Stainless Steel

Single Tapped Check Valve – Stainless Steel
Certified Lead Free

• 304 Stainless Steel cast body
• 304 Stainless Steel cast poppet
• Female Threads

Certified lead free to NSF/ANSI 372 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No.	Size	Tapped		Weight	List Price
		Inlet	Outlet
522SS	1	1/8	–	1.2
553SS	1	1/4	–	1.2
554SS	1	–	1/8	1.2
555SS	1	–	1/4	1.2
523SS	1 1/4	1/8	–	1.7
556SS	1 1/4	1/4	–	1.7
558SS	1 1/4	–	1/4	1.7
524SS	1 1/2	1/8	–	2.0
559SS	1 1/2	1/4	–	2.0
560SS	1 1/2	–	1/8	2.0
561SS	1 1/2	–	1/4	2.0
525SS	2	1/8	–	3.7
562SS	2	1/4	–	3.7
563SS	2	–	1/8	3.7
564SS	2	–	1/4	3.7
