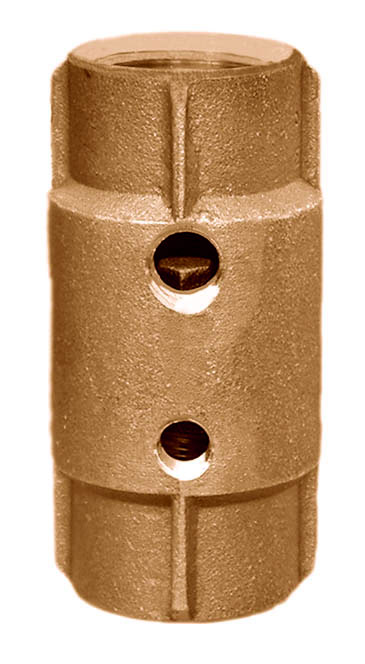

Check Valve – Double Tap

Check Valve – Double Tap
Lead Free*

• Silicon bronze cast body
• Silicon bronze cast poppet
• Female Threads

* Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No.	Part No.	Size	Tapped		Weight	List Price	List Price
Stemmed	Stemless		Inlet	Outlet		Stemmed	Stemless
541SB	–	3/4	1/8	1/4	.8		–
580SB	–	3/4	1/4	1/4	.8		–
542SB	2542SB	1	1/8	1/4	1.2
581SB	2581SB	1	1/4	1/4	1.2
588SB	2588SB	1	1/8	1/8	1.2
543SB	2543SB	1 1/4	1/8	1/4	1.7
582SB	2582SB	1 1/4	1/4	1/4	1.7
589SB	2589SB	1 1/4	1/8	1/8	1.7
Part No.	Part No.	Size	Tapped		Weight	List Price	List Price
Stemmed	Stemless		Inlet	Outlet		Stemmed	Stemless
544SB	2544SB	1 1/2	1/8	1/4	2.0
583SB	2583SB	1 1/2	1/4	1/4	2.0
533SB	2533SB	1 1/2	1/8	1/8	2.0
545SB	2545SB	2	1/8	1/4	3.7
584SB	2584SB	2	1/4	1/4	3.7
546SB	–	2 1/2	1/8	1/4	9.8		–
547SB	–	3	1/8	1/4	10.1		–
548SB	–	4	1/8	1/4	23.5		–
