800LF Series Deluxe Frost-Proof Yard Hydrant- Certified Lead Free

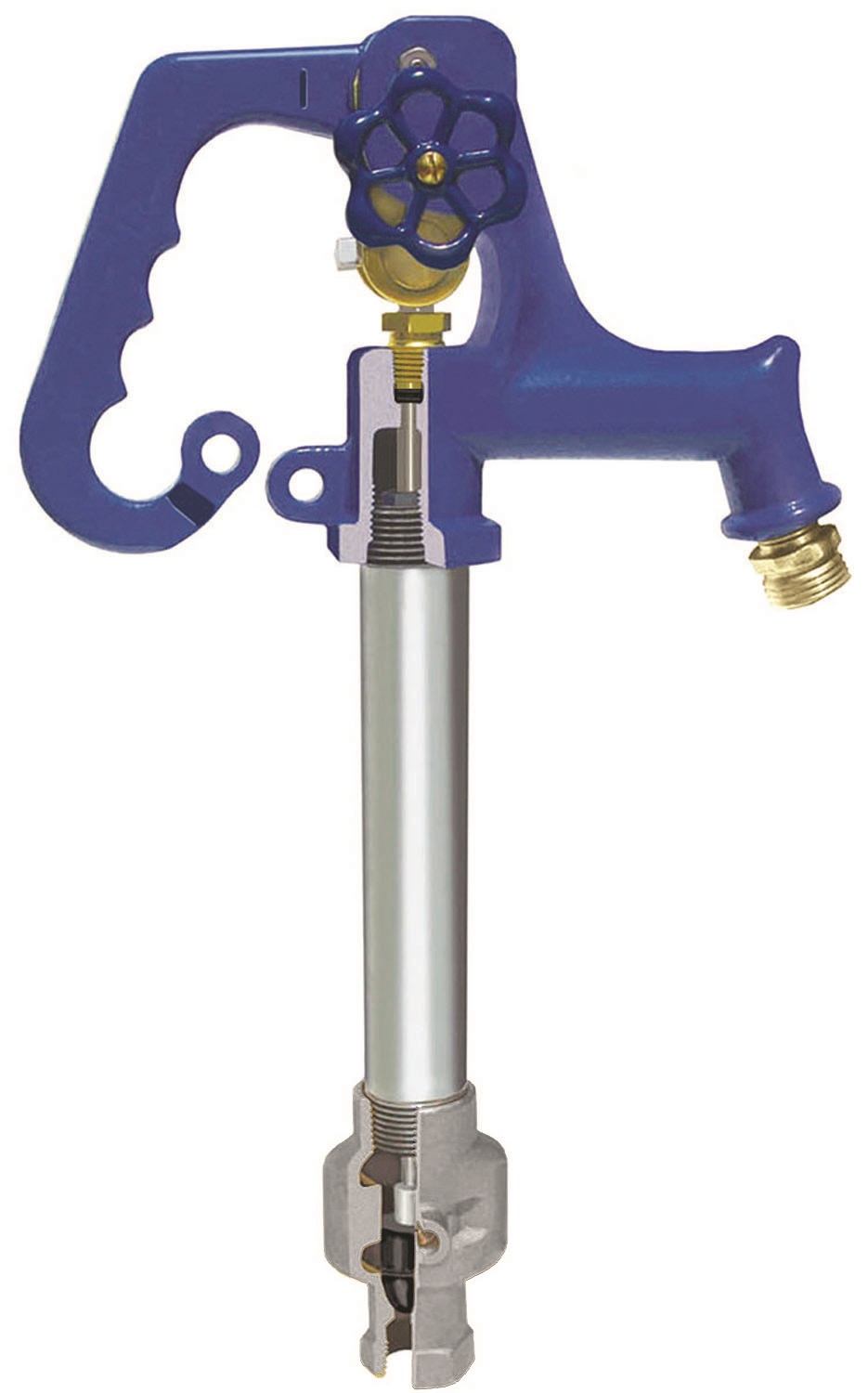

800LF Series Deluxe Frost-Proof Yard Hydrant w/ Stainless Steel Pipe & Operating Rod
Certified Lead Free

Models 820LF – 828LF

Certified by Truesdail Laboratories. Meets all Federal and state Safe Drinking Water Acts and requirements. Does not meet California Prop. 65 (Environmental Law)

Recommended for use in highly corrosive applications

• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Stainless Steel Bypass Valve
• Stainless Steel Rod and Pipe
• All Simmons Yard Hydrants have Cast Iron head and handle with Blue Polyester Powder Coated Finish
• Flow Lock Wheel
• Plunger can be replaced without digging the hydrant up.
• Max Pressure 120 PSI
• Many parts and accessories are common for all models

Part No.	Inlet	Bury Depth	Weight
820LF	3/4″	1′	11.9
821LF	3/4″	1-1/2′	13.5
822LF	3/4″	2′	14.5
823LF	3/4″	3′	16.8
824LF	3/4″	4′	18.9
825LF	3/4″	5′	21.2
826LF	3/4″	6′	23.4
827LF	3/4″	7′	25.7
828LF	3/4″	8′	28.2

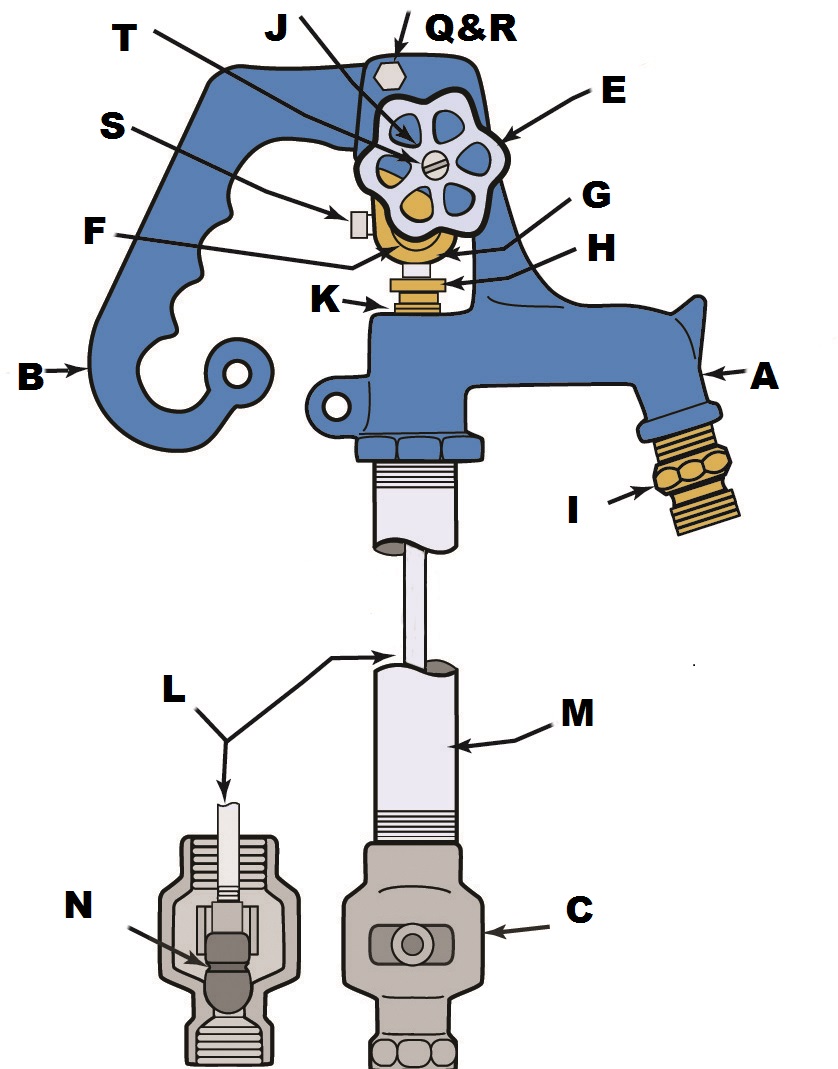

Yard Hydrant Parts for Models 820LF – 828LF

Ref. Letter	Part No.	Name of Part
	850SB	Parts Kit
	840	Head – Complete
A	8820	Head
B	8821	Handle
C	8832SS	Valve Body
E	8824*	Flow Lock Wheel
F	8825°	Brass Connector
G	8826°	Brass Links (Price per pair)
H	8847°	Brass Packing Nut
I	8844	Hose Adapter
J	8829*	Brass Stem, Square Head
K	8839°	Buna-N “O” Rings (Price per pair)
L	8843	Stainless Steel Pump Rod, 7/16″
M	8813	Stainless Steel Pipe, 1″
N	8842°	Plunger (One piece)
Q	8301°	Stainless Steel Lock Nut
R	8836°	Fulcrum Bolt – Stainless Steel
S	8837°	Square Head Set Screw St. Steel
T	8610*	Screw for Flow Lock Nut
° Included in Parts Kit. Refer to Parts Kit photo
* These parts make up the Flow Lock Wheel assembly
