4800LF Series Premier Frost-Proof Yard Hydrant- Certified Lead Free

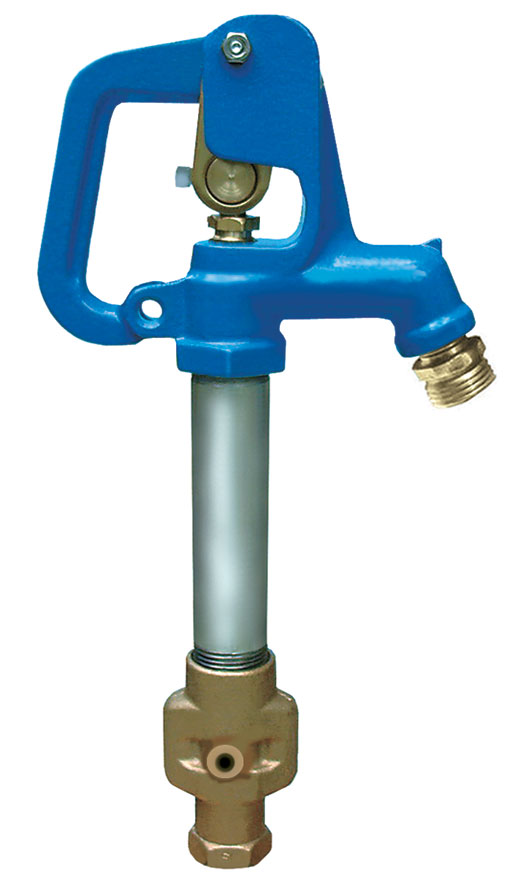

4800LF Series Premier Frost-Proof Yard Hydrant
Certified Lead Free

Certified by Truesdail Laboratories. Meets all Federal and state Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)

• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Plunger can be replaced without digging the hydrant up
• All components identical to 800LF Series except head casting and handle are smaller. Does not have flow lock wheel
• Polyester Powder Coat finish

Part No. Bury Depth Weight
4800LF 1 11.2
4801LF 1 1/2 12.6
4802LF 2 13.6
4803LF 3 15.9
4804LF 4 18.1
4805LF 5 20.6
4806LF 6 23.0
4807LF 7 25.
4808LF 8 27.8

untitled4800

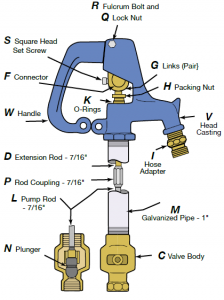

Ref. Let. Part No. Name of Part
850SB Parts Kit
890 Head – Complete
V 8891 Head
W 8892 Handle
C 8832 Valve Body
D 8843 Extension Rod, 7/16″
F 8825° Brass Connector
G 8826° Brass Links (Price per pair)
H 8847° Brass Packing Nut
I 8844 Hose Adapter
K 8839° Buna-N “O” Rings (Price per pair)
L 8814 Pump Rod, 7/16″
L 8845 Stainless Steel Pump Rod, 7/16″
M 8815 Galvanized Pipe Casing, 1″
N 8842° Plunger (One piece)
P 8834 Rod Coupling, 7/16″
Q 8301° Stainless Steel Lock Nut
R 8836° Fulcrum Bolt – Stainless Steel
S 8837° Square Head Set Screw St. Steel
° Included in Parts Kit.
