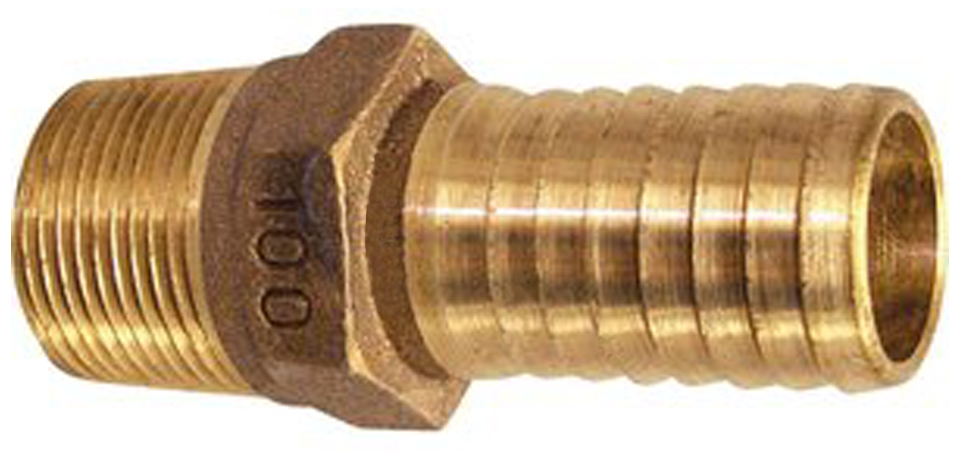

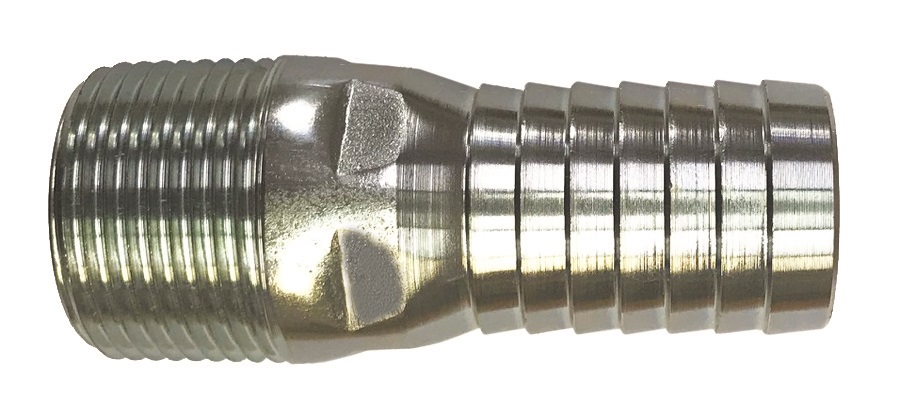

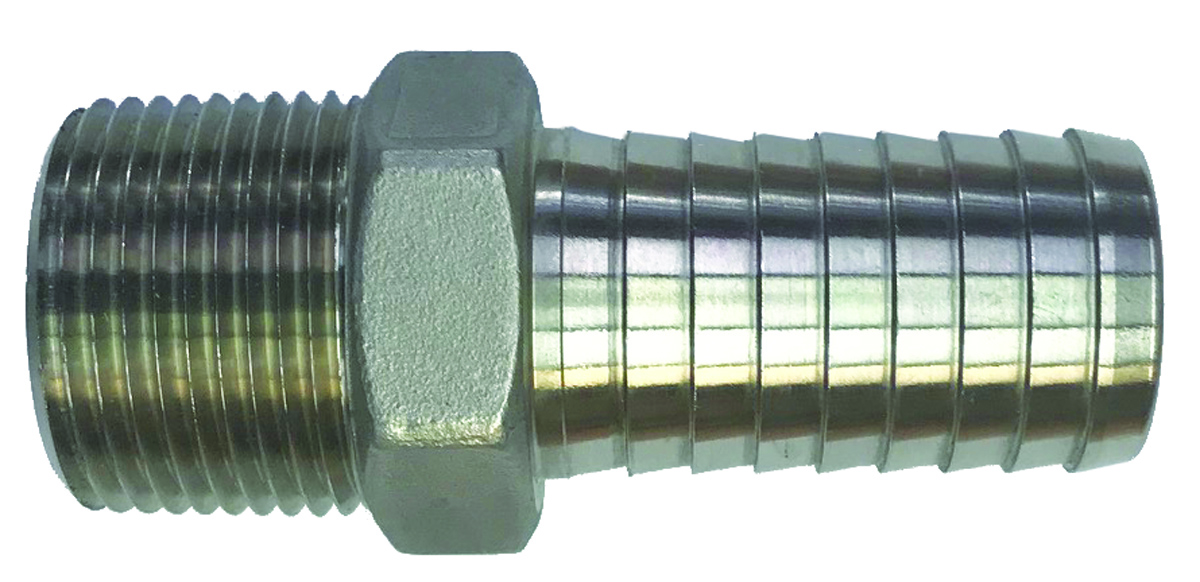

Male Adapter – Import
- Zinc Plated Steel or Cast Bronze
- Certified Lead Free
| Part No. | Material | Size Inches | Barbs | List Price |
| IMAS-2 | Steel | 1/2″ | 6 | – |
| IMAS-3 | Steel | 3/4″ | 6 | – |
| IMAS-4 | Steel | 1″ | 6 | – |
| IMAS-5-4 | Steel | 1-1/4″ MIP x 1″ INS | 6 | – |
| IMAS-5 | Steel | 1-1/4″ | 6 | – |
| IMAS-5XL | Steel | 1-1/4″ Long | 10 | – |
| IMAS-6 | Steel | 1-1/2″ | 6 | – |
| IMAS-8 | Steel | 2″ | 7 | – |
| IMAB-2 | Cast Bronze | 1/2″ | 6 | – |
| IMAB-3 | Cast Bronze | 3/4″ | 6 | – |
| IMAB-3-4 | Cast Bronze | 3/4″ MIP x 1″ INS | 6 | – |
| IMAB-4-3 | Cast Bronze | 1″ MIP X 3/4″ INS | 6 | – |
| IMAB-4 | Cast Bronze | 1″ | 8 | – |
| IMAB-4L | Cast Bronze | 1″ LONG | 13 | – |
| IMAB-4-5 | Cast Bronze | 1″ MIP x 1-1/4″ INS | 7 | – |
| IMAB-5-4 | Cast Bronze | 1-1/4″ MIP x 1″ INS | 7 | – |
| IMAB-5-4L | Cast Bronze | 1-1/4″ MIP x 1″ INS LONG | 13 | – |
| IMAB-5 | Cast Bronze | 1-1/4″ | 6 | – |
| IMAB-5L | Cast Bronze | 1-1/4″ LONG | 13 | – |
| IMAB-6 | Cast Bronze | 1-1/2″ | 8 | – |
| IMAB-8 | Cast Bronze | 2″ | 8 | – |

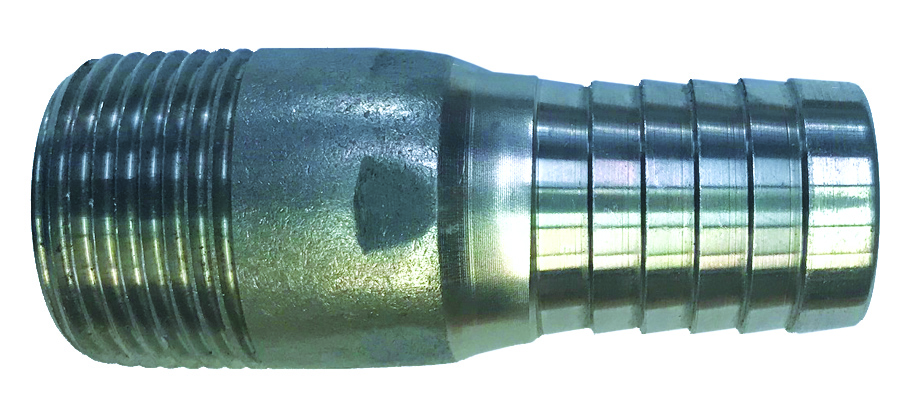

Stainless Steel Male Adapter – Import
- Certified Lead Free
- 304 Stainless Steel
- IMASS-100,1025,125 is Cast SS with Hex
| Part No. | Material | Size Inches | Barbs | List Price |
| IMASS-2 | Stainless Steel | 1/2″ | 6 | – |
| IMASS-3 | Stainless Steel | 3/4″ | 6 | – |
| IMASS-4 | Stainless Steel | 1″ | 6 | – |
| IMASS-5 | Stainless Steel | 1-1/4″ | 6 | – |
| IMASS-6 | Stainless Steel | 1-1/2″ | 6 | – |
| IMASS-8 | Stainless Steel | 2″ | 7 | – |
| IMASS-100 | Cast Stainless Steel | 1″ | 9 | – |
| IMASS-100L | Cast Stainless Steel | 1″ LONG | 13 | – |
| IMASS-1025 | Cast Stainless Steel | 1-1/4″ MIP x 1″ INS | 9 | – |
| IMASS-1025L | Cast Stainless Steel | 1-1/4″ MIP x 1″ INS LONG | 13 | – |
| IMASS-125 | Cast Stainless Steel | 1-1/4″ | 9 | – |
| IMASS-125L | Cast Stainless Steel | 1-1/4″ LONG | 13 | – |

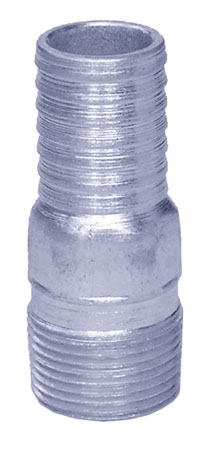

Male Adapter – USA
• Galvanized Steel or Red Brass
• Certified Lead Free
| Galvanized Part # | Brass Part # | Size Inches | Weight | List Price Galvanized | List Price Red Brass |
| MAS-2 | MAB-2 | 1/2 | 0.15 | – | – |
| MAS-3 | MAB-3 | 3/4 | 0.2 | – | – |
| MAS-4 | MAB-4 | 1 | 0.3 | – | – |
| MAS-5 | MAB-5 | 1 1/4 | 0.5 | – | – |
| MAS-6 | MAB-6 | 1 1/2 | 0.7 | – | – |
| MAS-8 | MAB-8 | 2 | 0.9 | – | – |
| MAS-10 | – | 2 1/2 | 1.6 | – | – |
| MAS-12 | – | 3 | 2.8 | – | – |
| MAS-16 | – | 4 | 4.7 | – | – |
