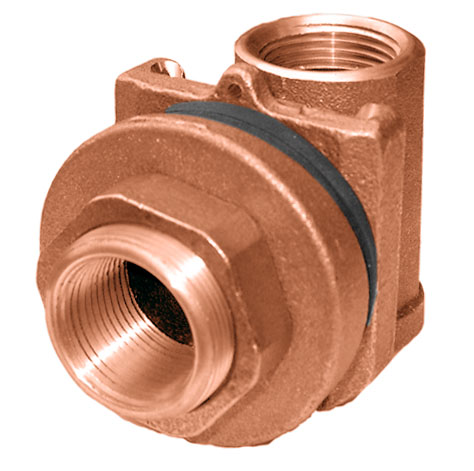

Pitless Adapter

Pitless Adapter



Certified Lead Free*

*Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

• Silicon bronze body
• Buna-N O-Ring
• Vertical position indicator

Part No.	Size	Req. Hole Size	Fits Casing Size	Supports lbs	Weight	List Price

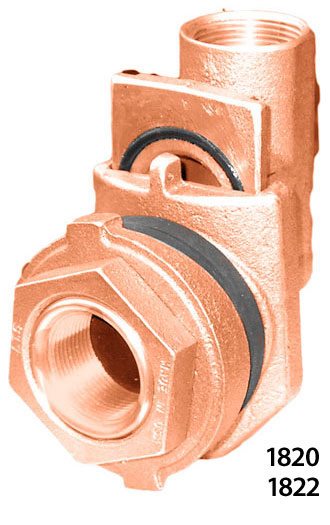

1820SB	1	1 3/4	5″ – 12″	5,000	4.2	–
	Not available. See 1840SB
1822SB	1 1/4	2 1/8	5-5/8″ – 12″	5,000	6.0	–



Compact Pitless Adapter

Certified Lead Free*

*Certified lead free to NSF/ANSI 372 and NSF/ANSI 61 by Truesdail Laboratories. Meets all State and Federal safe water drinking acts and regulations including California Prop 65.

• Silicon bronze body
• Buna-N O-Ring
• Vertical position indicator

All Simmons Pitless Adapters Certified Water Tight by the Water Systems Council Pitless Adapter Division

Part No.	Size	Req. Hole Size	Fits Casing Size	Supports lbs	Weight	List Price
1840SB	1	1 5/8	5″ – 12″	5,000	3.1	–



Pitless Adapter

• Bronze body
• Buna-N O-Ring
• Vertical position indicator

Part No.	Size	Req. Hole Size	Fits Casing Size	Supports lbs	Weight	List Price

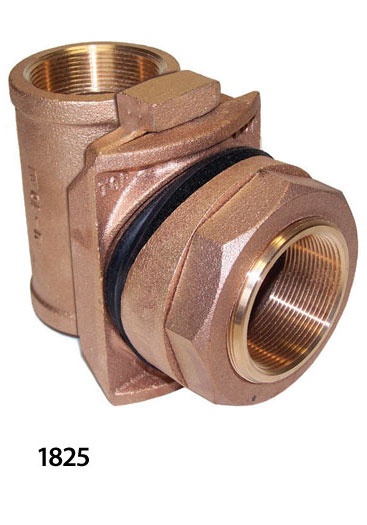

1825SB	2	3 1/8	5 5/8″ – 12″	5,000	10.8	–
