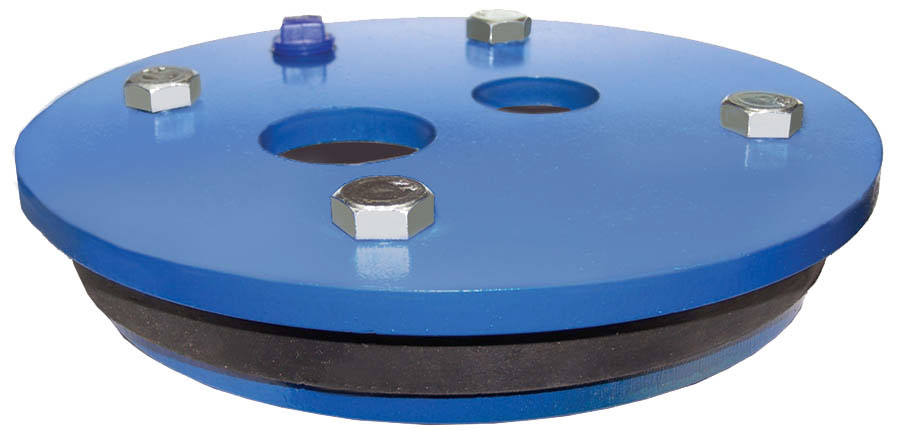

Well Seal – Steel – Double Hole

Steel Well Seal – Double Hole – Solid Top

• A36 hot roll steel
• Zinc plated steel bolts
• 3/4″ molded rubber, 35 durometer
• Powder coated polyester finish

Part No. Well Size I.D. Drop Pipe Sizes Vent Tapping Top Plate Max. Load Weight List Price
3598 6 1 1/4 x 1 1/2 3/16 1,100 5.1
3833 6 1 1/2 x 1 1/4 1/2 3/16 1,100 4.7
3832 6 2 x 1 1/2 1/2 3/16 1,100 4.5
3593 6 1/4 1 1/4 x 1 1/2 3/16 1,100 5.1
3834 6 1/4 1 1/2 x 1 1/4 1/2 3/16 1,100 4.7
3837 6 1/4 2 x 1 1/2 1/2 3/16 1,100 4.5
3557 8 1 1/4 x 1 1/2  1/4 1,800 6.8
