Well Seal – ABS – Single Drop Pipe

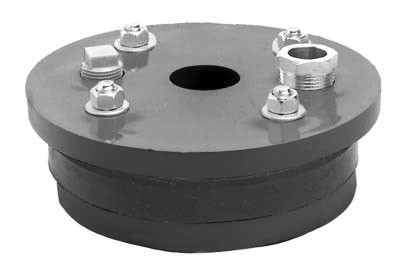

image3ABS Well Seal – Single Drop Pipe – Solid Top

• ABS material
• Zinc plated steel bolts
• 3/4″ molded rubber, 50 durometer

Part No. Well Size I.D. Drop Pipe Size Cable Hole Tapping Vent Tapping Weight List Price
1900 4 3/4 3/4 1/2 1.4
1901 4 1 3/4 1/2 1.4
1902 4 1 1/4 3/4 1/2 1.4
1903 4 1 1/2 3/4 1/2 1.3
1904* 4 2 1/2 1/4 1.2

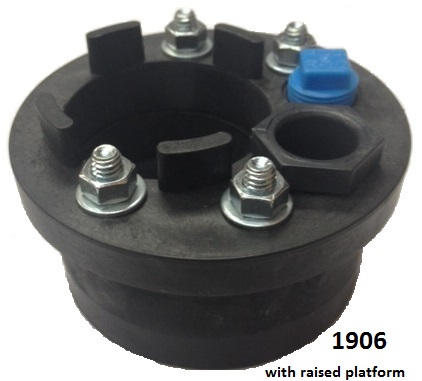

1906** 4 2 3/4 1/2 1.2
1907 4 BLANK 3/4 1/2 1.2
1921 5 1 3/4 1/2 2.5
1922 5 1 1/4 3/4 1/2 2.3
1923 5 1 1/2 3/4 1/4 2.3
1924 5 2 3/4 1/4 2.1
1931 5 5/8 1 3/4 1/2 2.7
1932 5 5/8 1 1/4 3/4 1/2 2.7
1933 5 5/8 1 1/2 3/4 1/4 2.6
1934 5 5/8 2 3/4 1/4 2.5
Part No. Well Size I.D. Drop Pipe Size Cable Hole Tapping Vent Tapping Weight List Price
1939 6 Blank 1 1/2 2.8
1940 6 3/4 1 1/2 2.7
1941 6 1 1 1/2 2.7
1942 6 1 1/4 1 1/2 2.6
1943 6 1 1/2 1 1/2 2.5
1944 6 2 3/4 1/2 2.4
1949 6 1/4 Blank 1 1/2 2.8
1950 6 1/4 3/4 1 1/2 2.7
1951 6 1/4 1 1 1/2 2.7
1952 6 1/4 1 1/4 1 1/2 2.6
1953 6 1/4 1 1/2 1 1/2 2.5
1954 6 1/4 2 3/4 1/2 2.4
* 1/2″ cable hole
** with Raised Fitting Support
