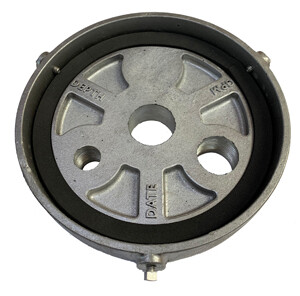

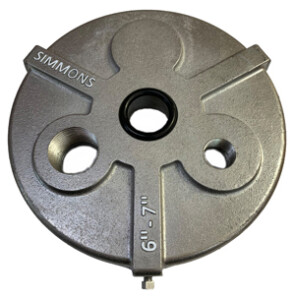

Over the Top Cast Aluminum Well Seals
• 319 Cast Alumnum
• Buna-N Seal on top of casing
• Machined drop pipe seat with Buna-N O-ring
• Three SS set screws
• Maximum load 15,000 lbs.
• Customization available
| Part No. | Well Size I.D. | Drop Pipe Size | Vent Tapping | Cable Tapping | List Price | ||||
| 3950 | 4″-4-1/2″ | BLANK | – | – | |||||
| 3951 | 4″-4-1/2″ | BLANK | 1/2″ | 3/4″ | |||||
| 3900 | 4″-4-1/2″ | 1″ | 1/2″ | 3/4″ | |||||
| 3901 | 4″-4-1/2″ | 1-1/4″ | 1/2″ | 3/4″ | |||||
| 3902 | 4″-4-1/2″ | 1-1/2″ | 1/2″ | 3/4″ | |||||
| 3903 | 4″-4-1/2″ | 2″ | 1/2″ | 3/4″ | |||||
| 3952 | 5″ | BLANK | – | – | |||||
| 3953 | 5″ | BLANK | 1/2″ | 3/4″ | |||||
| 3910 | 5″ | 1″ | 1/2″ | 3/4″ | |||||
| 3911 | 5″ | 1-1/4″ | 1/2″ | 3/4″ | |||||
| 3912 | 5″ | 1-1/2″ | 1/2″ | 3/4″ | |||||
| 3913 | 5″ | 2″ | 1/2″ | 3/4″ | |||||
| 3954 | 6″-7″ | BLANK | – | – | |||||
| 3955 | 6″-7″ | BLANK | 1/2″ | 1″ | |||||
| 3920 | 6″-7″ | 1″ | 1/2″ | 1″ | |||||
| 3921 | 6″-7″ | 1-1/4″ | 1/2″ | 1″ | |||||
| 3922 | 6″-7″ | 1-1/2″ | 1/2″ | 1″ | |||||
| 3923 | 6″-7″ | 2″ | 1/2″ | 1″ | |||||
| 3924 | 6″-7″ | 2-1/2″” | 1/2″ | 1″ | |||||
| 3925 | 6″-7″ | 3″ | 1/2″ | 1″ | |||||
| 3956 | 8″ | BLANK | – | – | |||||
| 3957 | 8″ | BLANK | 1/2″ | 1″ | |||||
| 3930 | 8″ | 1″ | 1/2″ | 1″ | |||||
| 3931 | 8″ | 1-1/4″ | 1/2″ | 1″ | |||||
| 3932 | 8″ | 1-1/2″ | 1/2″ | 1″ | |||||
| 3933 | 8″ | 2″ | 1/2″ | 1″ | |||||
| 3934 | 8″ | 2-1/2″ | 1/2″ | 1″ | |||||
| 3935 | 8″ | 3″ | 1/2″ | 1″ | |||||
| 3958 | 10″ | BLANK | – | – | |||||
| 3959 | 10″ | BLANK | 1/2″ | 1″ | |||||
| 3940 | 10″ | 1″ | 1/2″ | 1-1/4″ | |||||
| 3941 | 10″ | 1-1/4″ | 1/2″ | 1-1/4″ | |||||
| 3942 | 10″ | 1-1/2″ | 1/2″ | 1-1/4″ | |||||
| 3943 | 10″ | 2″ | 1/2″ | 1-1/4″ | |||||
| 3944 | 10″ | 2-1/2″ | 1/2″ | 1-1/4″ | |||||
| 3945 | 10″ | 3″ | 1/2″ | 1-1/4″ | |||||
| 3946 | 10″ | 4″ | 1/2″ | 1-1/4″ | |||||
