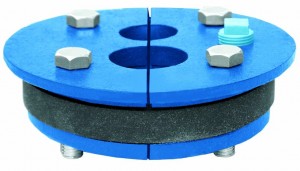

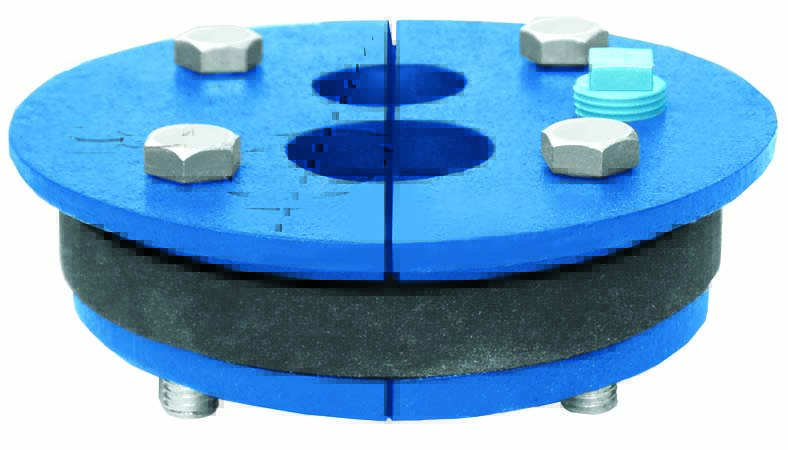

Well Seal – Double Drop Pipe – Split Top Plate – Jet Pump
• Class 25 Non-toxic lead free painted cast iron
• Zinc plated steel bolts
• Double Hole
• 3/4″ molded rubber, 50 durometer
| Part No. | Well Size I.D. | Drop Pipe Size | Vent Tapping | Weight | List Price |
| 149 | 3 | 1 x 3/4 | 1/4 | 1.7 | – |
| 152 | 4 | 1 1/4 x 1 | 1/2 | 2.9 | – |
| 153 | 4 | 1 1/4 x 1 1/4 | 1/2 | 2.8 | – |
| 156 | 4 1/4 | 1 1/4 x 1 | 1/2 | 3.0 | – |
| 157 | 4 1/4 | 1 1/4 x 1 1/4 | 1/2 | 2.8 | – |
| 161 | 5 | 1 1/4 x 1 | 1/2 | 4.8 | – |
| 171 | 5 5/8 | 1 1/4 x 1 | 1/2 | 6.3 | – |
| 172 | 5 5/8 | 1 1/4 x 1 1/4 | 1/2 | 6.2 | – |
| 177 | 6 | 1 1/4 x 1 | 1/2 | 7.1 | – |
| 178 | 6 | 1 1/4 x 1 1/4 | 1/2 | 7.1 | – |
| 183 | 6 1/4 | 1 1/4 x 1 | 1/2 | 7.3 | – |
| 184 | 6 1/4 | 1 1/4 x 1 1/4 | 1/2 | 7.3 | – |
