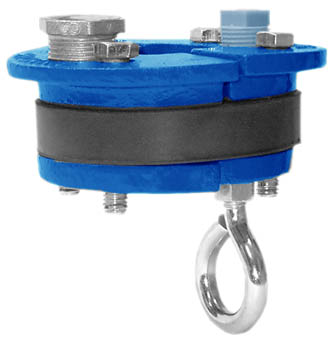

Well Seal – Single Drop Pipe, Eye Bolt

Well Seal – Single Drop Pipe – Split Top Plate – w/ Eye Bolt

• Class 25 Non-toxic lead free painted cast iron
• Zinc plated steel bolts
• Single Hole
• 3/4″ molded rubber, 50 durometer

Part No. Well Size I.D. Drop Pipe Size Cable Hole Tapping Vent Tapping Weight List Price
208 3 1 3/8 1/8 2.1
211 4 1 3/4 1/2 3.5
212 4 1 1/4 3/4 1/4 3.4
216 4 1/4 1 3/4 1/2 3.6
217 4 1/4 1 1/4 3/4 1/4 3.5
221 5 1 1 1/2 5.5
222 5 1 1/4 1 1/2 5.1
223 5 1 1/2 1 1/2 5.0
224 5 2 3/4 1/2 4.3
231 5 5/8 1 3/4 1/2 7.6
232 5 5/8 1 1/4 3/4 1/2 7.3
233 5 5/8 1 1/2 3/4 1/2 7.2
234 5 5/8 2 3/4 1/2 6.8
236 6 1 1 1/2 7.5
Part No. Well Size I.D. Drop Pipe Size Cable Hole Tapping Vent Tapping Weight List Price
237 6 1 1/4 1 1/2 7.1
238 6 1 1/2 1 1/2 7.0
239 6 2 1 1/2 6.9
241 6 1/4 1 1 1/2 7.5
242 6 1/4 1 1/4 1 1/2 7.1
243 6 1/4 1 1/2 1 1/2 7.0
244 6 1/4 2 1 1/2 6.9
296 8 1 1 1/2 16.5
297 8 1 1/4 1 1/2 16.3
298 8 1 1/2 1 1/2 16.0
299 8 2 1 1/2 15.2
